【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

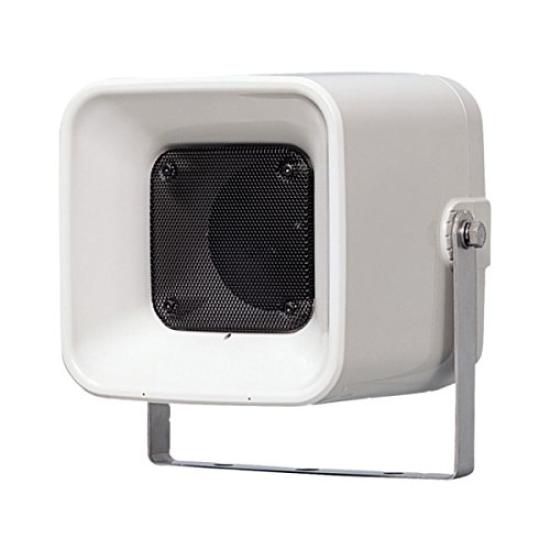

■ Speaker unit: 12 cm drip-proof cone speaker ■ Rated input: 6 W ■ Output sound pressure level: 96 dB/W (1 m) [94 dB 1 W (1 m) when 2nd signal input]
■ Input impedance: 10 kΩ (1 W), 3.3 kΩ (3 W), 1.7 kΩ (6 W) ■ Directivity angle: 60° horizontally, 60° vertically (at around 2 kHz) ■ Waterproof protection grade: Protection grade 4, splash-proof type (JIS C 0920-1993)
■ External dimensions: Width 181 mm x Height 174 mm x Depth 180 mm (main unit) ■ Mass: 1.7 kg
■ Compatible metal fittings: Stand TL-P15
■ Finish Horn part: Ivory (approximate to Munsell 4Y8/0.9) Back cover part: Ivory (approximate to Munsell 4Y8/0.9) Punching net part: Black (approximate to Munsell N1.5) Mounting bracket: Stainless steel (SUS304, t=2) Fixing bolt: M8 stainless steel (for mounting bracket and main body)
(12cm, 6W/3W/1W, L class) Splash-proof level clears JIS protection grade 4 (splash-proof type). Maintains high sound quality even when directly exposed to wind and rain. Ivory mold molding
