Five Options:
Option 1: 2GB (RAM) + 32GB (ROM) RDS
Option 2: 1GB (RAM) + 16GB (ROM) RDS
Option 3: 2GB (RAM) + 32GB (ROM) Carplay
Option 4: 2GB (RAM) + 16GB (ROM)
Option 5: 1GB (RAM) + 16GB (ROM)
Car Multimedia PLAYER With GPS Suits
For Seat
For Altea ab 05/2004
For Toledo ab 12/2004
For Leon ab 09/2005
For Altea XL ab 04/2007Alhambra ab 2010
For VW
For VW/SAGITAR/JATTA/JETTA
For VW/MAGOTAN/MAGOTAN V6
For VW/PASSAT B6
For VW/PASSAT V6
For VW/MAGOTAN VARIANT
For VW/PASSAT B7
For VW/PASSAT NMS
For VW/PASSAT Variant
For VW/PASSAT CC
For VW/PASSAT TSI
For VW/TOURAN
For VW/GOLF V
For VW/GOLF VI
For VW/GOLF VARIANT
For VW/TIGUAN / TIGUAN GP
For VW/SHARAN
For VW/CADDY
For VW/POLO
For VW/EOS
For VW/SCIROCCO
For A part of VW/T5/TRANSPORTER
For VW/R36 VARIANT
For VW/BEETLE
For VW/MULTZVAN
For VW/GOLF CROSS
For VW/GOLF BLUE MOTION
For VW/SPORTLINE
For VW/BORA
For VW/AMAROK
For Skoda
For Fabia Limousine ab 02/2007 bis 2012
For Fabia Combi ab 04/2007 bis 2012
For Praktic ab 04/2007 bis 2012
For Roomster ab 04/2006 bis 2012
For Octavia Combi 06/2004 bis Facelift
For Octavia Limousine ab 06/2004 bis Facelift
For Octavia II 2& III3
For Yeti ab 2009 bis 2012
For Superb/3 T ab 2008 bis 2012
Item Parameters:
General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A

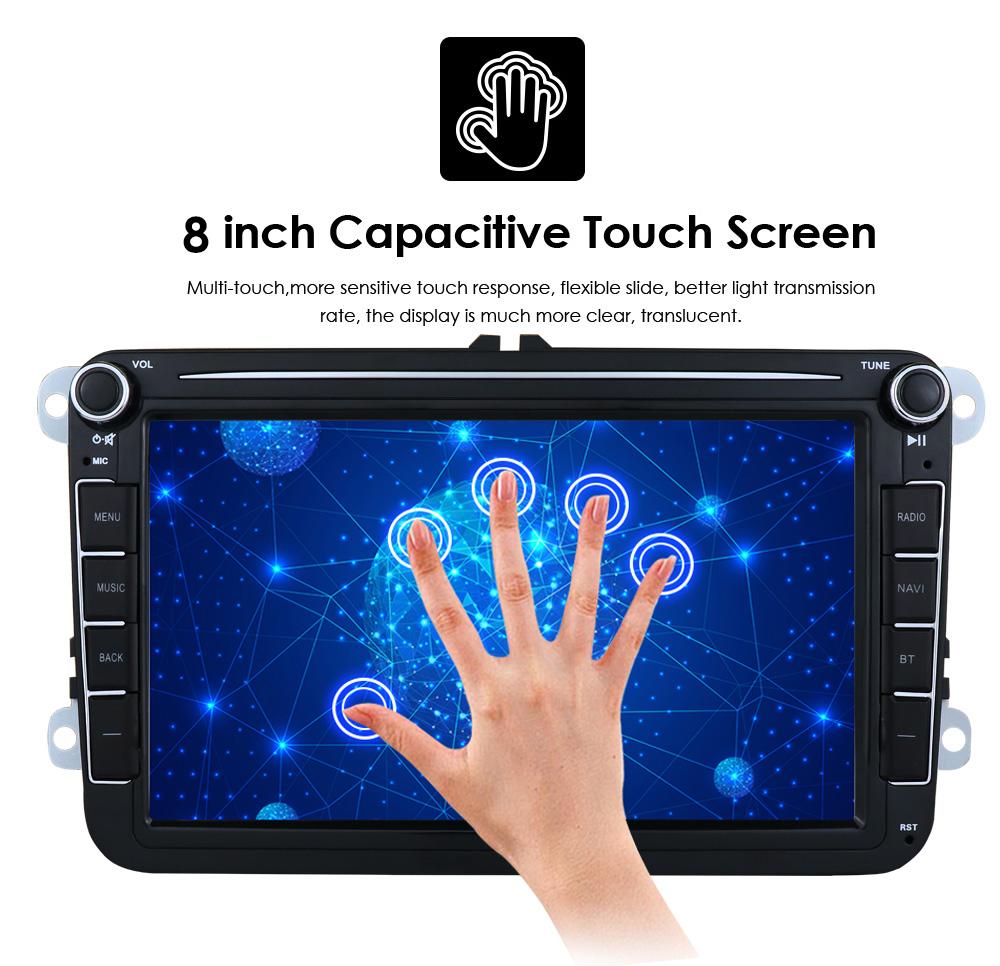

- Screen Size: 8 inch
System
- Operation System: Google Android 10
- CPU: QUAD CORE ARM Cortex A7 4*1.2 GHz
- RAM: 1GB
- ROM: 16GB
Display
- Touch Screen: Yes
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Apps-Icon Position: Yes
WiFi & 4G
- WiFi: Built-in WiFi Modem, support 802.11b/g/n
- 4G Dongle included: Not Included
Audio
- Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB
Video
- Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
GPS
- Operation System: Android
- Offline Navi: Offline map data preloaded, ready to use after installation
- Online Navi: Yes, support online navigating apps.
- Voice Guidance: Yes
- Support 2D/3D Map Views: Yes
- Dual Zone: Yes, navigating while music playing
Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- Bluetooth Music Control: Yes, play/pause/previous/next
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Setup: Auto Answer, Auto connect, Device name
- Built-in Microphone: Yes, on the front panel
Radio
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- It doesn't support XM radio, but you can access the same channels using the XM radio app.
USB
- Position: 2 USB Port, can be connected with Media/Camera/DAB+ Box / Smartphone
- Capacity: 2TB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
- Touch Music Title to play directly: Yes
DVR
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes, 1080P
- Play recorded Video directly: Yes
- Storing Position: Nand Flash/GPS Card/SD Card/USB Storage can be changed
DAB(+)-IN
- Built-in DAB Player App: Yes
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch Control DAB+ Box on unit: Yes
DTV-IN
- Built-in Digital TV Tuner: No
- External Port for TV Box: Yes, Support DVB-T/DVB-T2/ATSC/ISDB Box
- Power Supply to TV Box directly: Yes, you can connect our TV Box to achieve this function
- Touch Control the TV Box on unit: Yes, you can connect our TV Box to achieve this function
Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- Wallpapers: 5 live wallpapers, 17 standard wallpapers, support DIY wallpaper from Gallery
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support Mirror Link function: Yes, support screen mirroring from iPhone and android smartphone
- Support TPMS: YES (Not Included)
Setup
- WiFi/Hotspot/Bluetooth: Yes
- Brightness level adjustable: Yes
- Wallpaper: Wallpapers/Live Wallpapers/Gallery
- Sound: Key Tone & Volume
- Storage: Display Internal Storage/Nand Flash/Connected Device Storage
- Apps: Running Apps display/force stop/uninstall
- Security: Yes
- Accounts: Yes
- Languages and Input: more than 70 Languages and choose input method
- Backup and Reset: Yes
- Date and Time: Setting Date&Time by yourself or choose GPS/network-provided time
- Accessibility: Yes
- GPS: Yes, GPS application options/monitoring/sound mode/mixing ratio
- Driving safety: Watching Video, Reversing X-mirror/Volume, Reversing Trajectory/radar Display, Rear view ruler
- Amplifier: Rock/Pop/Jazz/Classic/Flat/Voice/Custom
- Steering Wheel Control: Yes
- Factory Settings: choose Radio Band and 88 Open-Unit-Logos
- About Device: Display Parameter Info.
Input
- AUX Video In: One
- AUX Audio In: L,R
- Rear-View Camera Video In: One
- DAB+ Box In: One
- Car DVR In: One
- Radio Antenna In: One
- GPS Antenna In: One
Output
- Audio Out: L,R
- Subwoofer Out: One
- Video Out: ONE
Accessories
- 2*Power Cable
- 1*Canbus Decoder Box
- 1*Wifi Antenna (built-in)
- 2*USB Adapter Cable
- 1*Factory USB Adapter Cable
- 1*GPS Antenna
- 1*RCA Harness
- 1*Rear Camera input RCA Cable
- 1*Radio Antenna Adapter Cable
- 1*External Microphone
