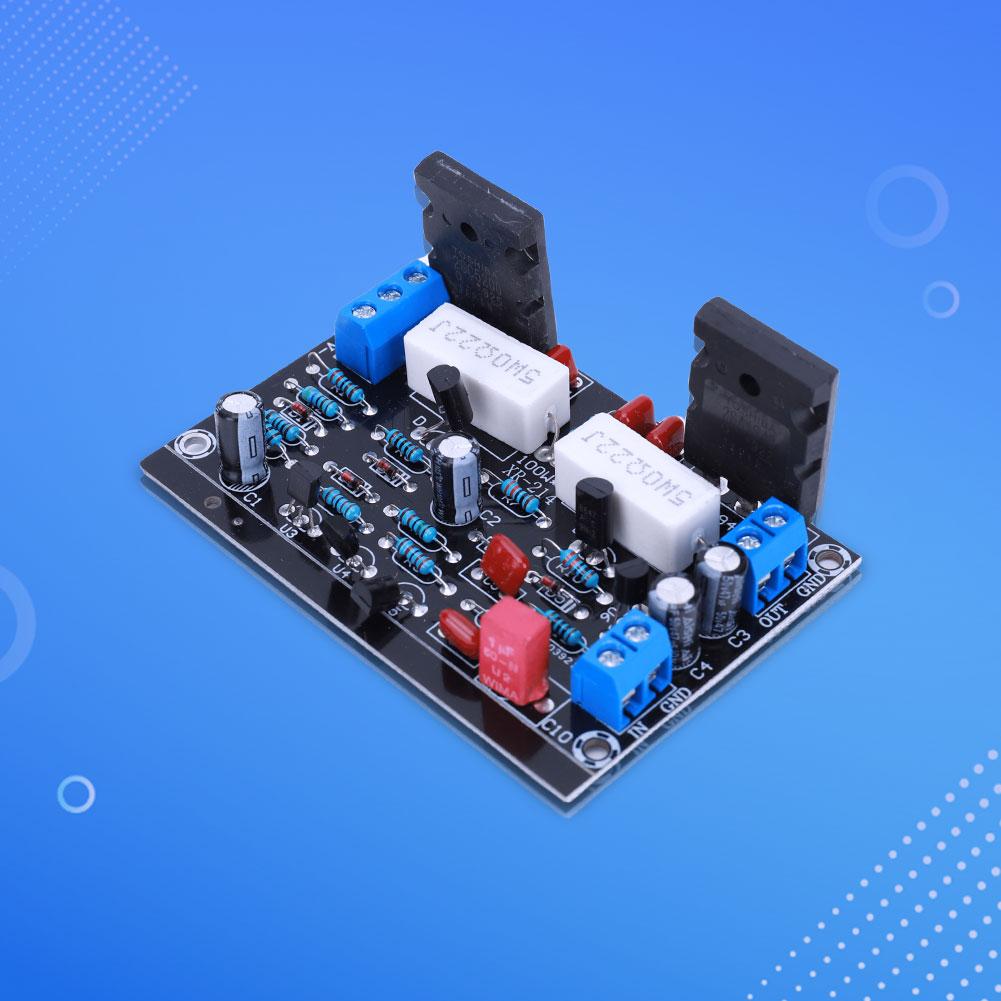

HIFI Audio Amplifier Board 2SC5200+2SA1943 Power Amplifier Board Mono Channel Power Audio Amplifier Module 100W DC 35V
Feature:
1. Low Noise Switch: The switch produces minimal noise, ensuring it does not interfere with the speaker's performance. We recommend adding a speaker protection circuit. This tube power amplifier not only eliminates the impact noise during power on/off but also prevents damage to the speakers by blocking any DC output in case of amplifier malfunction.
2. Minimal Background Noise: The speaker has extremely low background noise, allowing you to place your ear close to the speaker without hearing any unwanted sounds. This feature ensures an immersive audio experience.
3. Negligible Drift: Once installed, there is no need for any adjustments or tuning. The output voltage drift is typically less than 50mV and remains stable over time, providing you with a reliable and worry-free usage experience.
4. Classic Circuit Design: The use of a classic circuit design guarantees stable and reliable performance. Even if there are some unintended errors during production, the components remain protected, resulting in a high durability rate. You can trust in this hifi audio amplifier board's long-lasting quality.
5. Plug-and-Play: No need for any additional tuning or adjustments. As long as you correctly connect the power amplifier board without any human errors, it is highly likely to work flawlessly from the first attempt. This user-friendly feature makes it ideal even for beginners, who will have a high success rate right from the start.
Specification:
Origin: Mainland China
Material: Plastic
Working voltage: Recommended dual DC 10-45V dual DC 35V
Rated output power: 100W (4 ohms ± 35V)
Maximum output power: 150W (4 ohms ± 45V) The heat generation is huge, not recommended
Size: 80x50x35mm/3.35x1.97x1.38inch
Pitch: 5.08mm
The hole distance between the two power tubes: 47mm2SC5200+ZSA1943 is a disassembled part, but in good condition.
The PCB board is changed to black, but the function is the same.
Note:
The for Toshiba control of this product is a second-hand original chip that has been disassembled! ! !
Please pay attention to the distinction! ! !
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
