Feature:
1. Throttle Travel Calibration: This feature adapts to different remote control throttle travels, enhancing throttle response linearity, and providing a smoothly, accurate speed control experience for excellent performance.
2. Excellent Anti Interference: Engineered with ultra low resistant and large capacity electrolytic capacitors at the power input, this ESC boosts anti interference capabilities, ensuring dependable performance even in challenging conditions.
3. Advanced Craftsmanship: The design incorporates low resistant capacitors and separate heat sinks for output MOSFETs, effectively reducing thermal buildup and enhancing current handling capacity for improved efficiency.
4. Comprehensive Safety: Equipped with undervoltage, overvoltage, overheat, and remote sign loss safety, this ESC ensures robust safeguarding of your system, giving you peace of mind during works.
5. Applicable Model: This electronic speed controller is suitable for RC drones, RC airplanes, helicopters with 3.5mm plug. Check for better performance.
Specification:

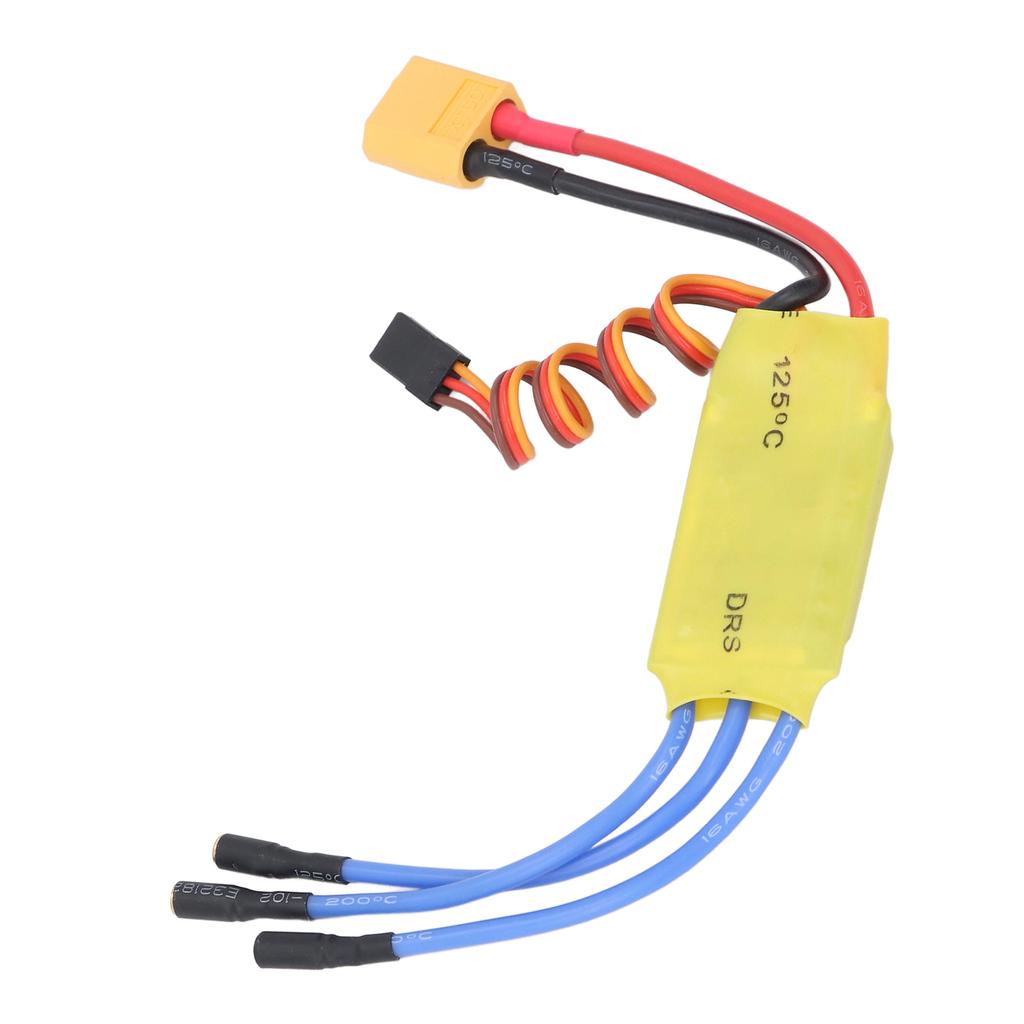

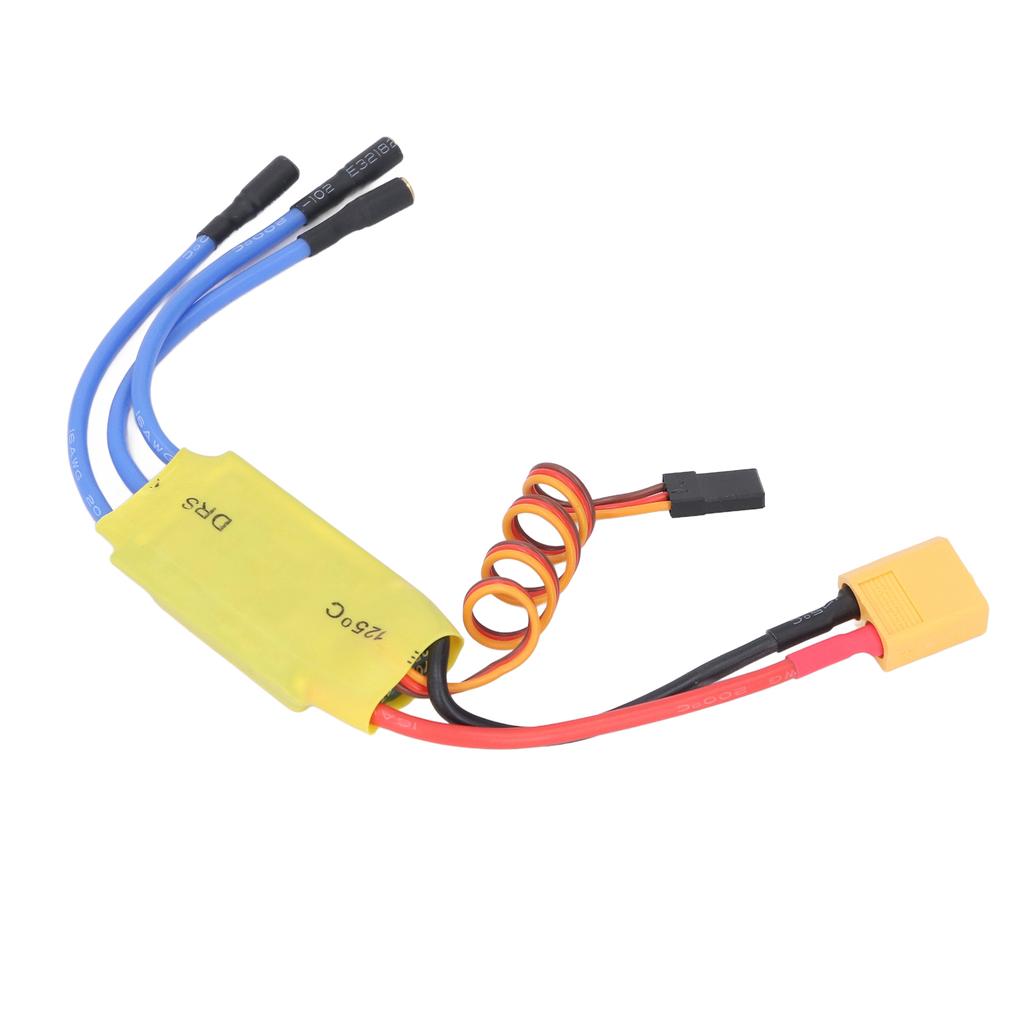

Item Type: Brushless Electronic Speed Controller
Material: PCB
Output Capacity: Continuous 30A, Burst 40A (not less than 10 seconds)
Input Voltage: 5.6V-16.8V (2 to 3 cell LiPo or 5 to 12 cell NiMH NiCd)
BEC Output: Linear voltage regulation, 2A
High Speed: 2 pole motor 210000rpm, 6 pole motor 70000rpm, 12 pole motor 35000rpm
Application: for RC drones, RC airplanes, helicopters (3.5mm plug)
How to Use:
A. Red positive, black negative, yellow sign wire;
B. Setting Method:
1. Turn on the transmitter and push the throttle to high (for FUTABA series transmitters need to select Reverse for throttle channel).
2. Connect the receiver, motor.
3. Power on the ESC. If the transmitter is working properly, you will hear the following sounds: (If the sound ends with a long beep and no more sounds, check the throttle channel reverse setting on the transmitter).
B B indicates LIPO automatic safety.
BB BB indicates NIMH NICD automatic safety.
BBB BBB indicates brake selection.
(When there is no action, all sounds will continue to loop until there is a request for work).
4. During the sound loop process, when you hear the desired setting, (for example, if selecting LIPO automatic safety, hear a B sound, pull the throttle to the low position quickly). The motor will make an incisive sound to confirm.
5. If there is another setting you want, quickly push the throttle to high to make a selection.
6. Once your desired setting is completed, wait for 2 seconds, the motor will make an appropriate battery safety confirmation sound, and after confirming the throttle position, you can use it.
7. LIPO automatic safety has only 2 safety voltage points, 6V and 9V, the battery does not need to be fully charged.
8. NIMH automatic safety is calculated according to the actual number of batteries, each battery is set to 0.8V, in order to accurately judge the battery voltage, please fill the battery. If it is not full, the electrical regulator will estimate the safety voltage at 70% voltage. (You can also use this feature when using 4LIPO)
C. Brake:
1. The factory Settings are none. A brake setting work can be done during actual use, so that the motor uses the back electromotive force to brake after closing the throttle.
2. If you want to remove this brake function, you can set a brake work again, then the function is cancelled.
3. Factory parameter reset function, because this series of electric thermostat has overheating and misoperation safety function, if you find that your electric thermostat acceleration, or steering, or throttle curve and other any characteristics and how to change the new time, then you can do a factory parameter setting, in order to regain high performance.
4. When the device is powered on, it plays a long tone of B, indicating that the LIPO auto safety state is in. BBB plays three tones, indicating that the NIMH NICD auto safety state is in.
Package List:
1 x Brushless Electronic Speed Controller
