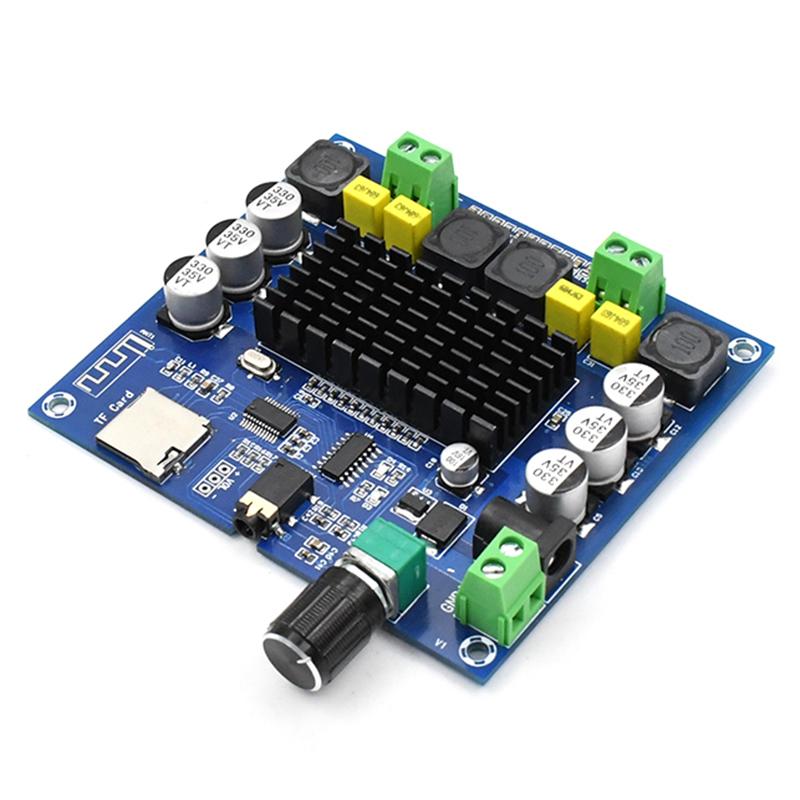

Two-channel Bluetooth power amplifier board
Support Bluetooth, TF card, AUX audio input
Bluetooth 5.0 transmission
Dual-channel 100W*2 onboard volume potentiometer
Name: Two-channel Bluetooth power amplifier board
Model: XH-A314
Input voltage: DC12~24V
Output power: 100W*2
Audio input: Bluetooth, TF card, AUX
Number of channels: two channels
Appearance size: 96*86*20mm
Installation aperture: 3mm
Installation hole distance: 88*78mm
Weight: 82g
Introduction:
XH-A314 Bluetooth power amplifier board adopts original imported power amplifier chip, with high-fidelity stereo sound quality; supports Bluetooth, TF card, AU× audio input; power amplifier is equipped with Bluetooth 5.0 high-speed transmission, supports APE, FLAC, MP3, WAV, WMA and other music formats , The mainstream music formats on the market can be decoded, as long as the mobile phone can play this Bluetooth, it will not affect the distance and will not freeze. The effective transmission distance of Bluetooth is 20 meters without hindering the connection. The input power of the amplifier is DC12~24V, with dual-channel output, the output impedance is 4~8Q, and the maximum power is 10OW*2; the onboard volume adjustment potentiometer can freely adjust the volume.
