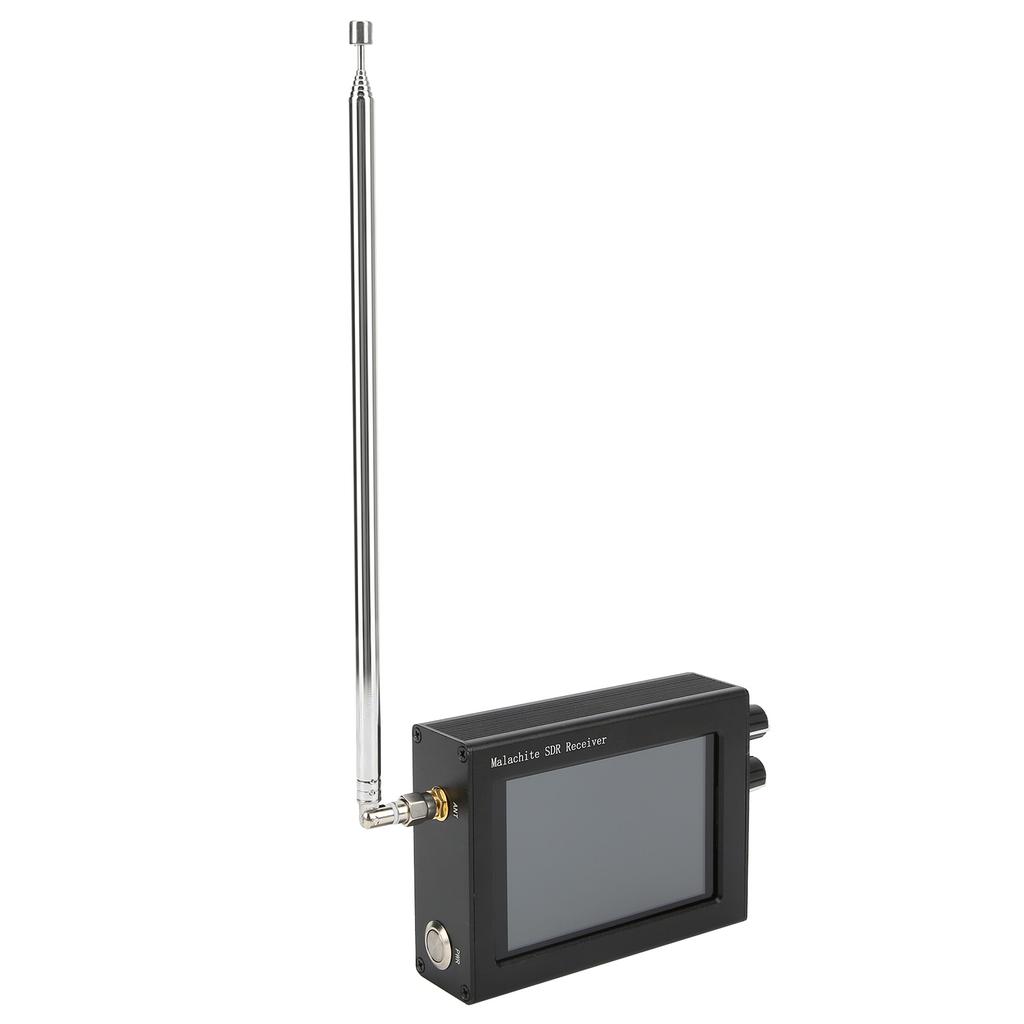

Receiver Wireless Radio 50K‑200Mhz 400Khz‑2Ghz Touch Screen Industrial Control Components

Feature: 1. Multifunctional chip for msi001, possess variable filter width, adaptive noise suppressor, threshold noise suppressor 2. Built‑in UHF memory, the control is 2 encoders with buttons and touch screen, the power supply is powered by the external TYPE‑C interface/ 3. Built-in reception on telescope and external . In order to improve the HF reception on the telescope , an additional board with a source follower was developed 4. Connect to the computer via USB, can transmit CAT, IQ and audio, with scalability, backlight controllable 5. Made of good‑quality aluminum alloy material, light weight, possess good strength and good corrosion resistance Specification: Item Type: Receiver Material: Aluminum alloy Frequency Range: 50Khz-200Mhz, 400Khz-2Ghz Analog Modulation: AM/SSB/NFM/WFM Sensitivity: Under 200Mhz conditions S/W: 0.3uv=10dB Chip Model: Characteristics of for msi001 chip Dynamic Resistance: 85dB Battery Model: Lithium battery(delivered with battery) Battery Capacity: 2500 mA Package List: 1 x Receiver 1 x 1 x USB Cable 1 x Connector 1 x User Manual Note: 1. Please do not overcharge, it will affect the battery life. 2. Please do not use over frequency. 3. Please do not knock the product, it will cause the product to be damaged and cannot be used.
